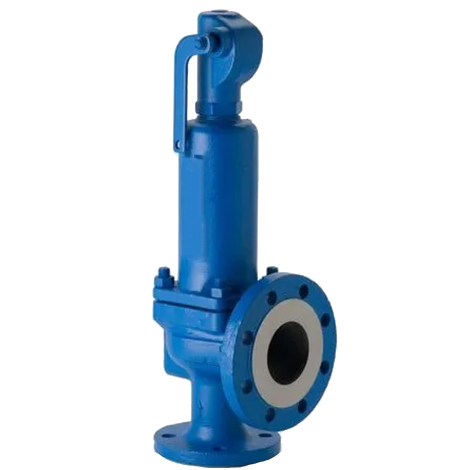

HIGH PERFORMANCE SAFETY RELIEF VALVE Built for demanding conditions with high flow capacity, tight shutoff, and corrosion resistance. Common in power generation, offshore platforms, and high-pressure gas systems.
PR-FECT VALVES manufactures Safety Relief Valve in a wide range of sizes, materials, and pressure ratings, ensuring compatibility with diverse industrial applications and offering advanced technical features such as precision-machined gates and corrosion-resistant coatings for enhanced performance and durability.
| PRODUCT DETAILS | |
|---|---|
| Sizes | 1/4" to 250 " |
| Pressure Class Ratings | ASME #150 to #2500 |
| End Connection | Screwed, Socket Weld, Flanged |
| Construction Types | Self Actuation |
| Salient Features | High Stable Flow coefficient, Metal Seats, Bellow Seal, Locking Arrangements etc. |
| Operator / Actuator | Adjustment Screw, Lever, others upon request |
Note: Customized design available upon request, with pressure class ratings available in PN, PSI, BAR, kPa, and additional units to suit project specifications and regional standards.
| STANDARDS SPECIFICATIONS | |
|---|---|
| Design & Manufacture | API 526, ASME B16.34 |
| Face To Face | API 526, MFG Standard |
| End Connections | ASME B16.11, ISO 7-1, BS 21 ASME B1.20.1, ASME B16.5/ B16.47 RF/FF/RTJ ASME 16.25, EN 1092 |
| Testing | API 527 |
| Nace | NACE MR0175 / ISO 15156 and NACE MR0103 / ISO17945 |
Note: We’re flexible beyond the listed standards and happy to align with your specific needs.
